CANTEK | C372 37″ TWO HEAD WIDEBELT SANDER (Used)
CantekTwo Head Widebelt Sander C372 37″

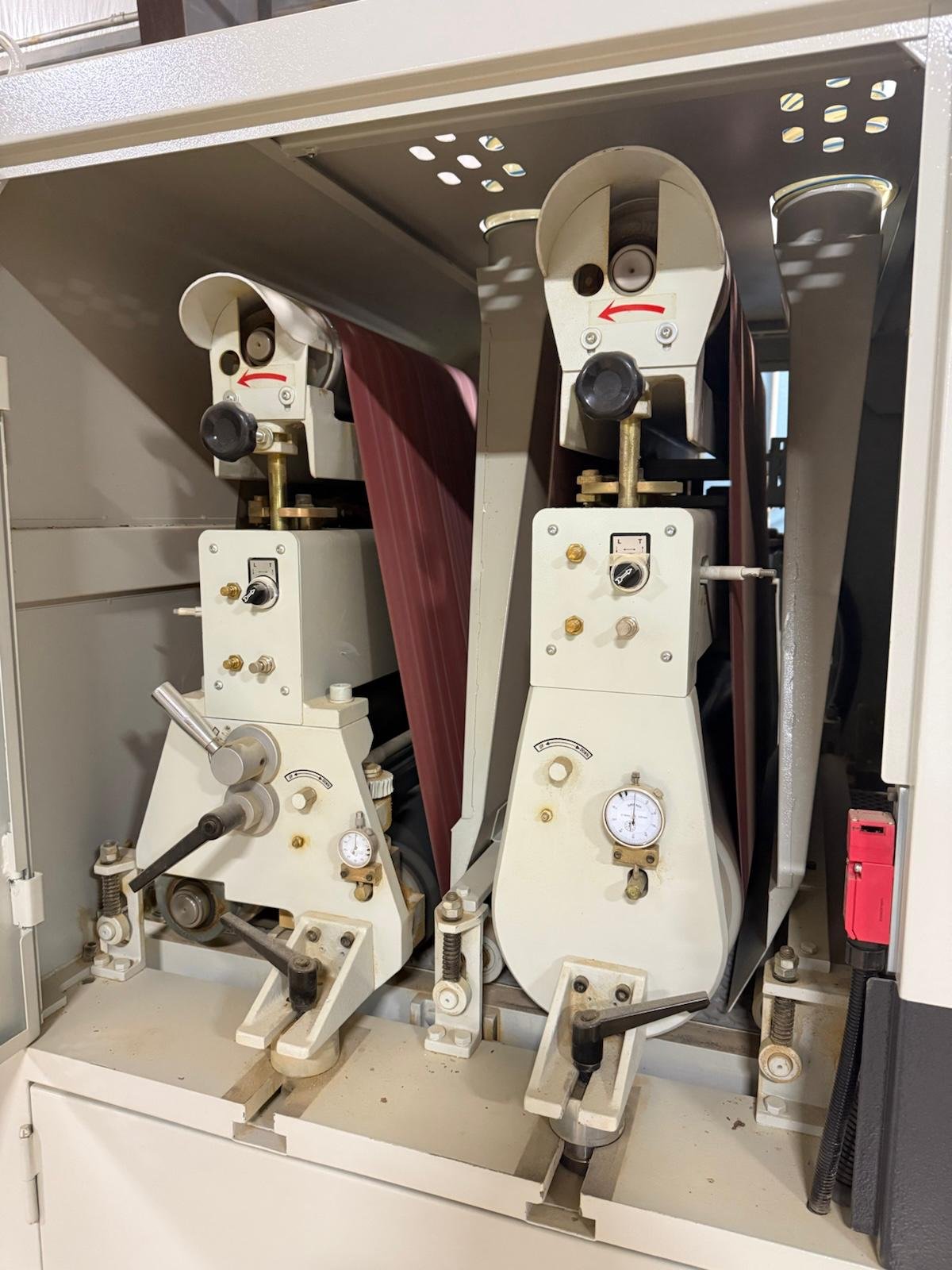

· Dual sanding heads increase efficiency by reducing the number of passes.
· First Head: Rubber contact drum with 7" diameter drum: Rubber contact drum for calibration sanding.
· Combination sanding unit with 5" rubber contact drum and 2" wide adjustable sanding platen for a wide range of sanding applications: Second Head: Combination head with 5" diameter drum and 2" wide platen.
· Adjustable platen produces superior sanding results with finer sandpaper grits.
· Solid cast iron sanding heads and mounting base for superior vibration damping resulting in an optimum sanding result.
· Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and table will automatically move into position. Equipped with motorized thickness adjustment with digital input control with settings to 0.001" / 0.01mm
Small footprint
DESCRIPTION
Abrasive belt size
37” X 60”
940 X 1524 mm
Main motor (First Head)
20 HP
20 HP
Main motor (Second Head)
15 HP
15 HP
Feed motor
2HP
2 HP
Table rise/fall motor
½ HP
½ HP
Maximum width stock
36"
914 mm
Minimum part length
13"
330 mm
Maximum thickness opening
5"
127 mm
Feed speed: variable
13 to 52 FPM
13 to 52 FPM
Passline height
33"- 38"
838 – 965 mm
Infeed table
11-1/2"
279- 12.7 mm
Dust outlet
4 @ 4”
4 @ 100 mm
Compressed air usage
2 CFM @ 90 PSI
2 CFM @ 90 PSI
New weight
3300 lbs
3300 lbs
Machine dimensions
74” X 64” X 70”
1879 X 1625 X 1778 mm
Shipping weight
5390 lbs
5390 lbs
Shipping dimensions
78” X 67” X 76”
1981 X 1701 X 1930 mm
Electrical requirements
230/3/60 = 112 amps
