Gannomat ProTec - CNC through-feed machine for drilling, grooving and routing

VIDEO

Short introduction:
• Small footprint requirement, less than 3,3 m2
• Large (1000 x 5600 x 60 mm) and small (60 x 250 x 6 mm) workpiece dimensions
• Gentle workpiece handling by air jets
• Precision through double laser measurement and workpiece straightening
Fscvivrwjbiplrsqegf
• Fast processing through 21/23 drilling spindles
• 21/23 drilling spindles for zero setting times
• Stable grooving unit till 8,3 mm saw blade width
• Strong routing unit 5,5 kW (S1), option
• Automatic tool changer for routing unit, option

CNC controlled DRILLING, GROOVING, ROUTING below 3,3m2 with high processing precision and zero setup time, this stands for the GANNOMAT ProTec.

TECHNOLOGY:
The massive processing unit is equipped with 13 vertical drilling spindles, 8 double-horizontal drilling spindles (6Y & 2X), 1 grooving saw in the Y-axis with 1 routing unit. This unit placement allows that all conventional drill / tools are in one seting and only need to be called up.

This CNC-controlled machining center operates from the bottom and can work in the through-feed and back-feed mode to the operator.

Steel working tables with air jets are the reference for horizontal drilling and in the combination of the massive workpiece clamping system and additional 4th axis at the drilling head, precision drilling is possible. A non-contact laser sensor is used for recognition of the actual workpiece edges (Top and bottom edge), this allows a automatic correction / adjustment of the drilling program.

USERS:
ProTec offers Hightech in technology and application and was developed as a entry-CNC-level-machine for small and medium companies on the one hand and on the other hand as a second machine to an integrated CNC manufacturing shop.

Table: 5′ x 10′
Workpiece Thickness: Max. 100 mm (3.94″)
Vacuum: 2 Pumps (690 m3/h, 60 HZ
Vertical Router Spindle: 13.4 HP
Speed: 1,500 – 24,000 RPM
HP: 13.4 HP
ATC
Tool Holder: Hsk63
Magazine Places: 10 Tool Places
Tool Weight: Maximum 5 Kg (11.02 Lbs.) Including Hsk Cone
Tool Diameter: 135 Mm Max When Equipped With 7 Tools
Tool Loading: via Integrated Pick-up Place at the Tool Changer
Pneumatic Reference Pins: 11
Z- Axsi: 245 mm/9.6″
X/Y/Z Vector Speed: 96/96/25 m/min

Automatic parts pusher with dust collection

Integrated outfeed conveyor with dust Collection

Brand: Sola/Hevi-Duty

Part Number: 63TCC350

Sola HD SOLATRON Plus Power Conditioner, 480 VAC Input, 480/277 VAC Output, 50 kVA Power, 60 Hz Frequency, 3 Phase, 0 to 40 deg C Operating, 150 dB Noise Attenuation, 96 % Power Efficiency, 43 in H x 28 in W x 26 in D Dimensions

Additional Description: SOLA-63TCC350 (N) 3PH REG 50KVA 480D-480Y

Key Features:

Brand: Sola/Hevi-Duty

Serial Number # :63TCC350

Dimensions:43 in H x 28 in W x 26 in D

Frequency Rating:60, 60 Hz

Input Voltage:480, 480 V AC, 480 VAC

Noise Attenuation:150, 150 dB

Operating Temperature:0 to 40, 0 to 40 deg C

Phase:3

Power Efficiency: 96, 96 %, 96%

Country of origin: US

Output voltage:480/277, 480/277 V AC, 480/277 VAC

DETAILED SPECIFICATIONS

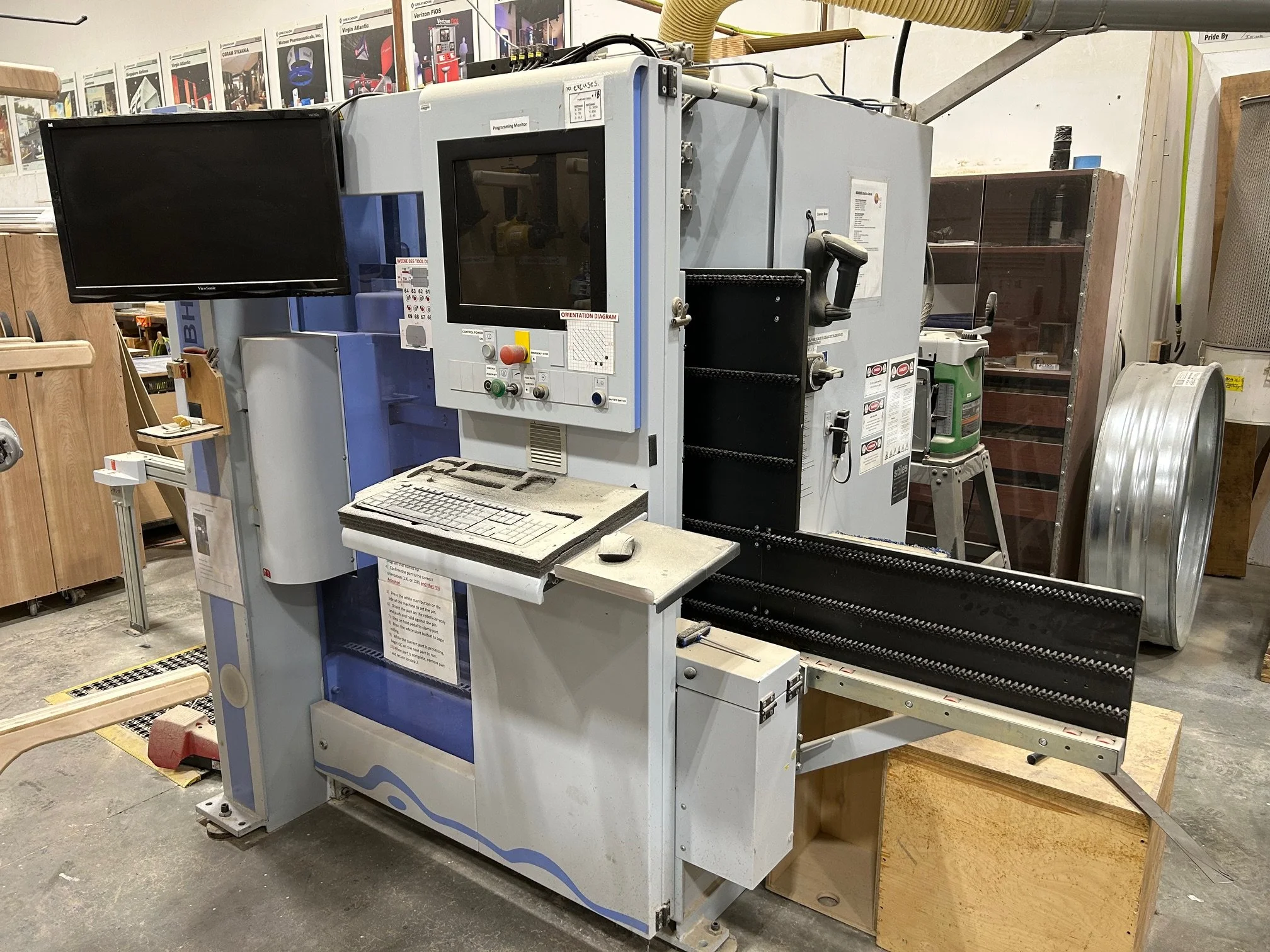

WEEKE - BHX 055: CNC Boring Machine.
-- Specifications
Flexible "Vertical" Machining Center that uses less than 5 sq/m of valuable floor space in addition to an innovative panel handling system.
-- Working Cap.:
Max. workable part size for "X" axis is 120" (3,050 mm); "Y" axis 33.4" (850 mm), max. part thickness 2.4" (60 mm).

Min. worktable part size for "X" axis is 7.8" (200 mm); "Y" axis 2.7" (70 mm); min. part thickness of 0.47" (12 mm). - Automatic infeed & outfeed from the LH or RH side.
-- Positioning Speed
The "BHX 055" can reach movement speeds of 164 FPM (50 MPM) in "X" & "Y" axis & 50 FPM (15 MPM) in "Z" axis with total safety - providing an unmatched working capacity.

Detail:

• X-Axis Max. Working Length: 120.08"

• Y-Axis Max. Working Width: 33.46"

• Maximum Part Thickness: 60mm

• 13 Vertical Drilling Spindles

• Four Horizontal Drilling Spindles in X

• Two Horizontal Drilling Spindles in Y

• One Grooving Saw in X

  -- Boring Unit:
  (1) 3 HP (2.3 kW) Variable speed from 1,500 - 7,500 RPM motor; (13) independent spindles with: (8) Spindles in "X" axis & (5) spindles in "Y" axis.
  (4) Horizontal spindles with: (1 + 1) in "X" Axis & (1 + 1) in "Y" axis.
  Boring block with "Quick Change" vertical spindle system.

Detail:

10 HP Router Spindle

• Four-Position Automatic Tool Changer

• Router Spindle Accepts HSK-63 Tool Holders

• 480v, 3ph

VIDEO

Manual saw with LCD displays showing saw height, -saw tilting angle, width/parallel fence positioning; scoring saw positioning with compressed air assist.

Saw blade elevation

Hydraulic footpedal elevation 0 - 170 mm - with LCD display

Saw blade tilting

Hydraulic footpedal tilting 0 - 46° - with LCD display

Parallel fence positioning

Handwheel positioning (frontside machine) - digital reading on central control

Dust cover top

Electrically controlled elevation

Cross-cut table

Aluminum swiveling table suitable for mitre cuts by scale without adjusting the cross-cuit fence -46° to +46° cuts

Cross-cut fence

Aluminum: 2,200 mm, extendable upto 3,300 mm, with 2-point stops

Mainsaw

ø400 mm, bookthickness; 0-170 mm, tilting 0° - 46°

Main Motor 5.5KW (7.5HP.)

Scorer Motor 0.75 KW

ø120 mm, 9,400 electric controlled positioning

Sliding table

3.200 mm

Width

850 mm

Dustextraction

Top: ø100 mm, bottom: ø120 mm

Weight

1.600 KG
