The FELDER circular saw unit “104” Manufactured entirely from cast iron, the new Felder “104” saw unit fulfils the highest demands of modern woodworking.

1. 4" (104 mm) cutting height with a 12 3/8" (315 mm) saw blade diameter

2. Electronic height adjustment of the saw blade (“Power-Drive” K1)

3. Electrical height and angle adjustment of the saw unit with LED display (“Power-Drive” K2)

4. Precise height adjustment via precision linear guides

5. Optimal extraction with a completely enclosed saw aggregate

6. Large scale, double ball bearing saw arbor

7. The Felder 700 Series saw assembly is fully compatible with dado tooling. Thanks to removable flanges and table insert, the Felder designed, fully adjustable dado cutters can be used.

8. Scoring Unit: For chip free cutting of laminated panels. The saw blade can be mechanically or electronically driven and can be set in both height and lateral position.

9. The fully electrical “Power-Drive” control offers exact adjustment and repeat accuracy. The saw blade height and the angle settings can be adjusted at the turn of a knob, the fine setting adjustments are carried out to tenth of a millimetre accuracy using a push button. Red LED digits display the current position in real time on the control panel.

10. The Felder rearward tilting ­spindle is the correct way for easy and safe operation:

    • Safety, since there is no pinch point

    • No limitations on work piece height

    • Problem free power feeder operation

    • Impeccable workpiece ­finish

    • Optimal chip removal

11. The Felder 700 Series spindle aggregate sets standards that are unparalleled.

    1. 115 mm spindle useable height above the table (140/160 mm)

    2. Quick-change system of the moulder spindle

    3. Change the speed simply from the front of the machine

    4. Highspeed spindle for router tools with a speed of 15,000 rpm

    5. Electrical height adjustment with digital LED display

    6. Electrical angle adjustment with digital LED display

    7. 4 operating speeds (3500, 6500, 8000, 10,000 rpm)

    8. Rearward tilt 0° to 45°

    9. Precise, double sided guide support

    10. Dovetail guidance system of the height adjustment

    11. Excellent vibration absorption from heavy cast iron unit

12. The shaper fence allows tooling of a maximum diameter of 230 mm to be used. The fine adjustment can be set between -5 to +25 mm. The extraction of the chips is done via the integrated extraction connection.

13. Tennoning & Slotting: Large dimensioned and designed for maximum load bearing capacity, the aluminium format sliding table “hovers” on the “X-Roll”, a highly developed guiding technology. The X shape (“X-Roll”) design of the rollers distributes the load optimally on all sides. The linear surface of the steel rollers running on the hardened and ground guiding surface guarantees unbeatable precision and smoothness. “X-Roll” will warrant you the quality and precision that you expect from your new tilting spindle shaper. Another reason to choose Felder: 10 year factory warranty to underline the reliability of “X-Roll”.

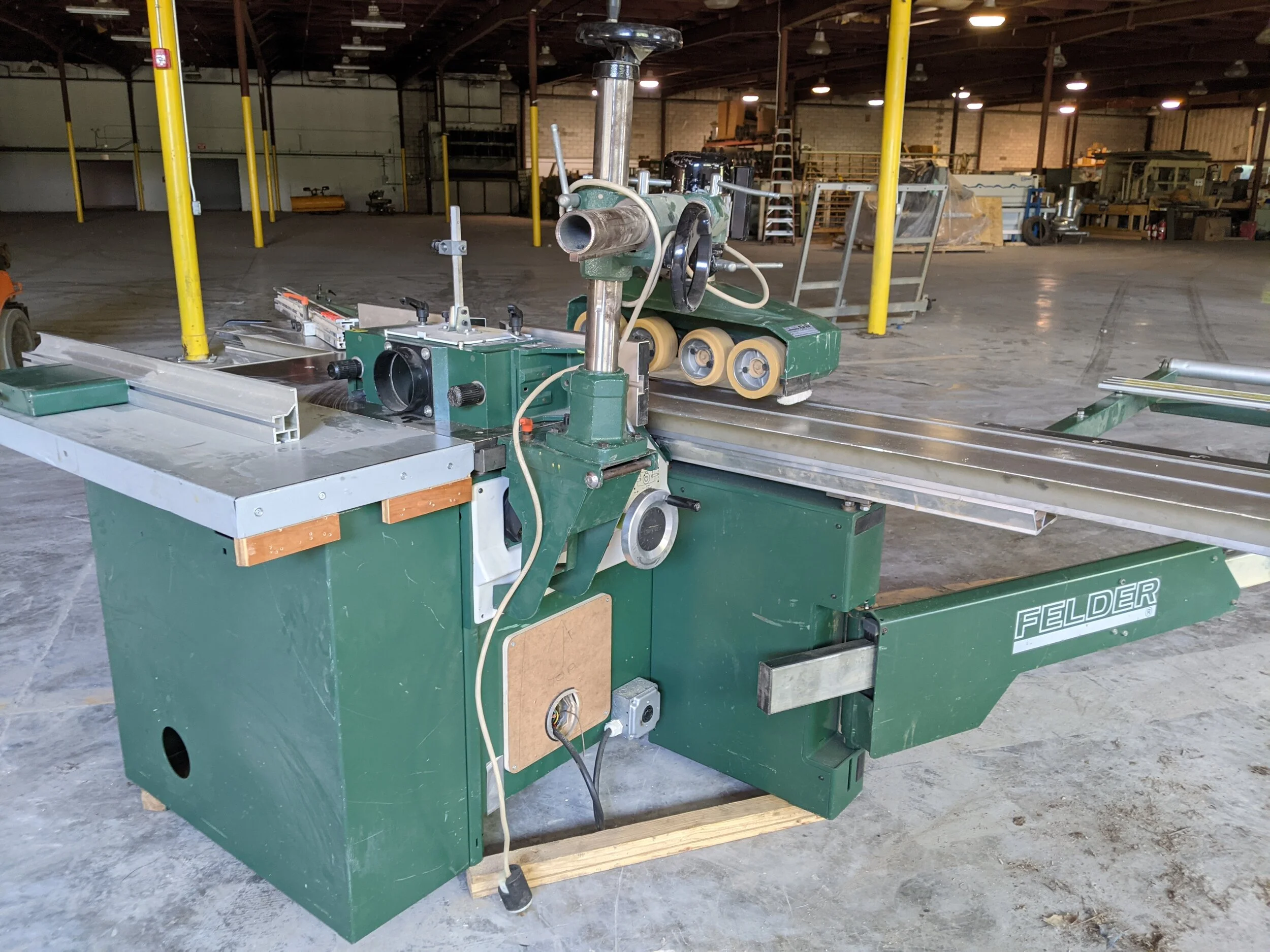

14. Power Feeder: The use of a power feeder ensures that standard work when moulding can be carried out cleanly and precisely.
