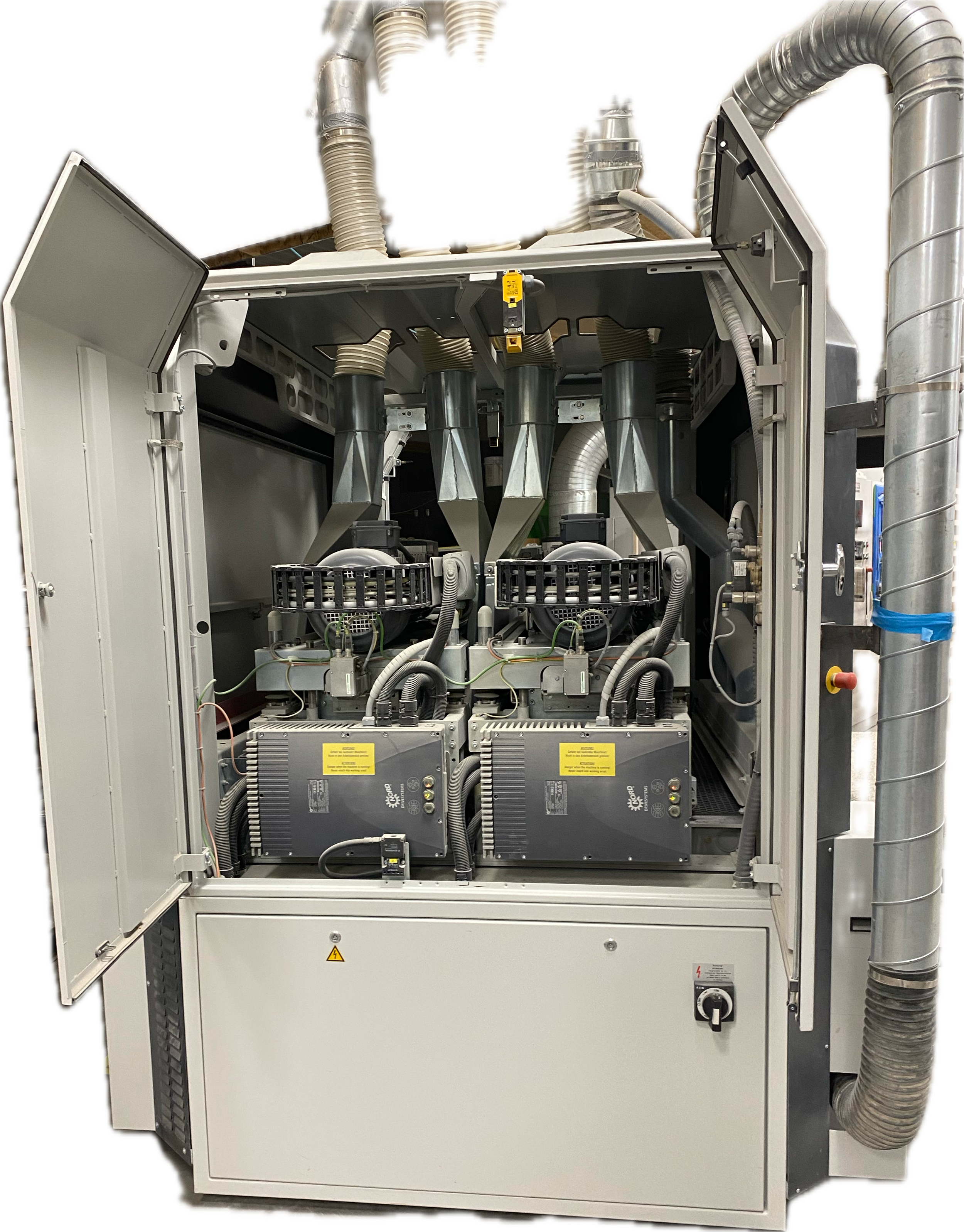

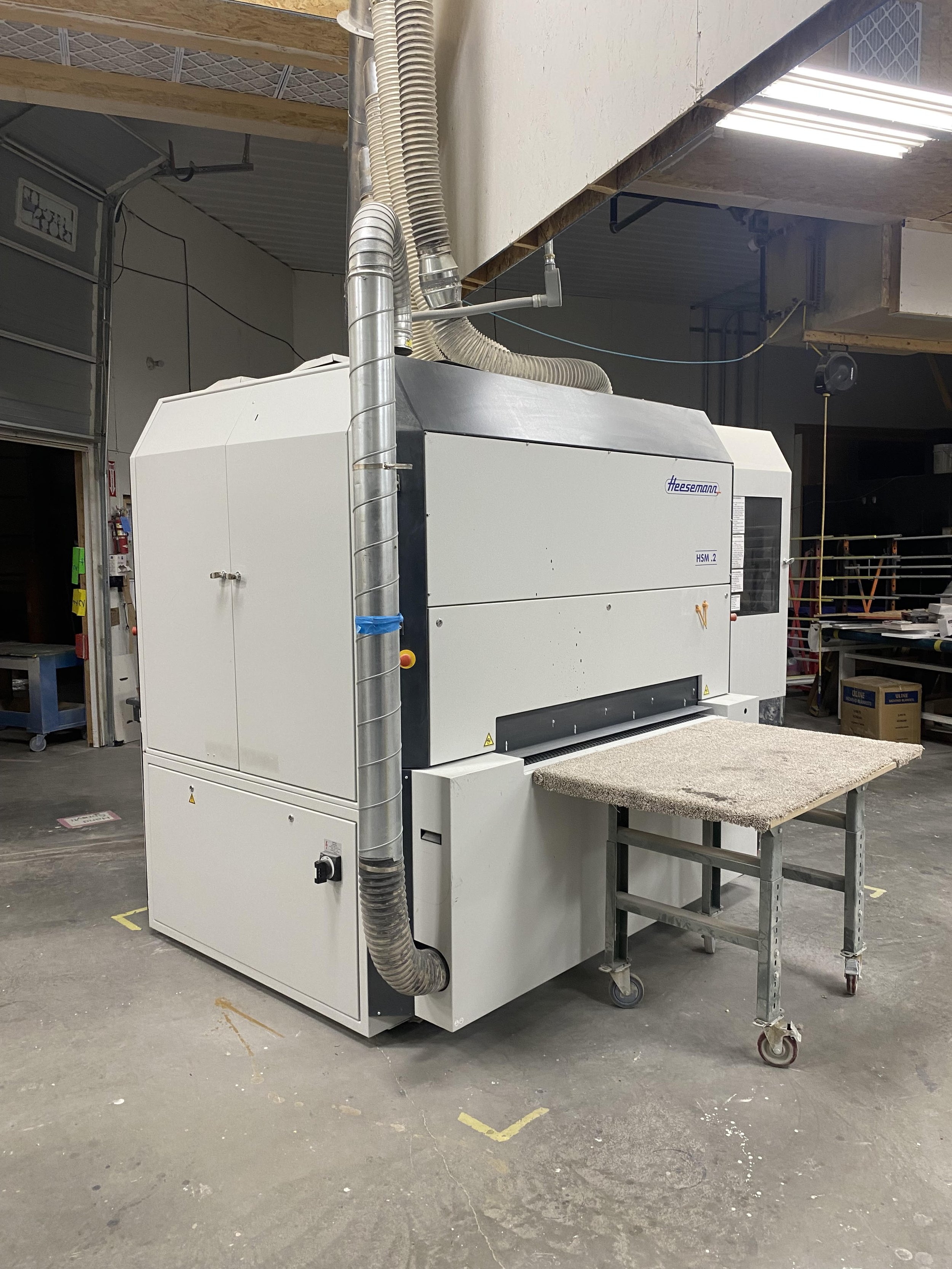

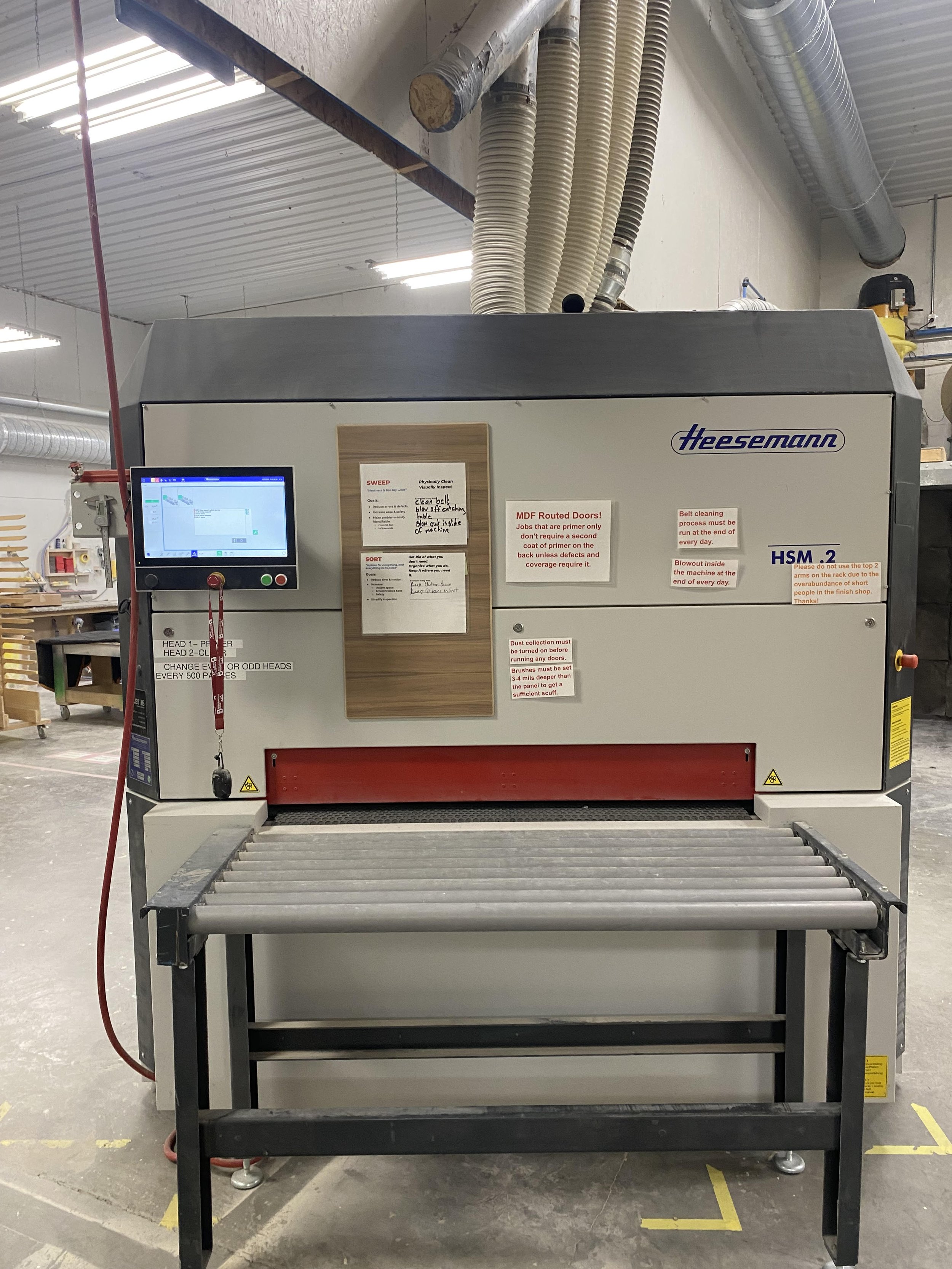

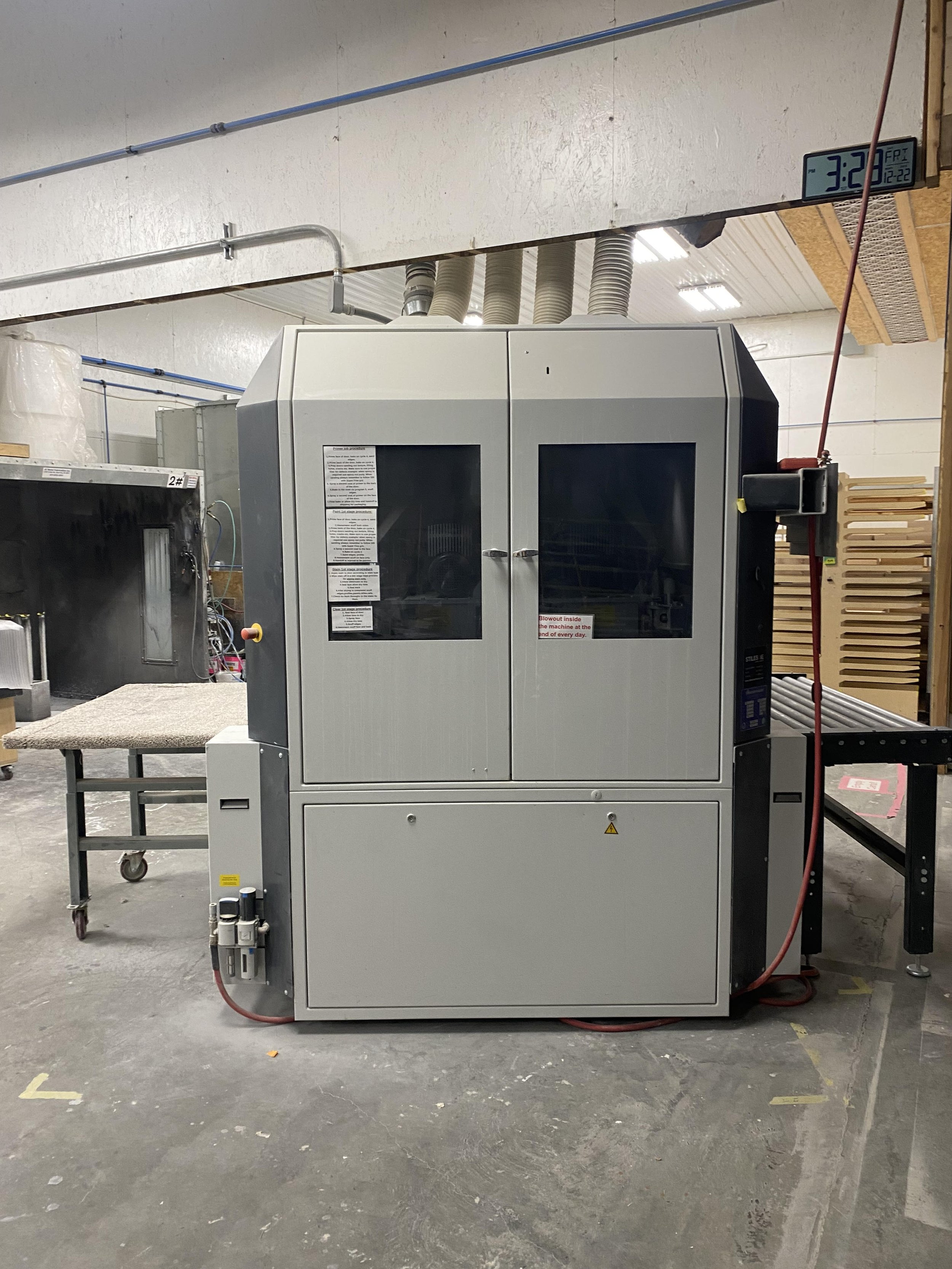

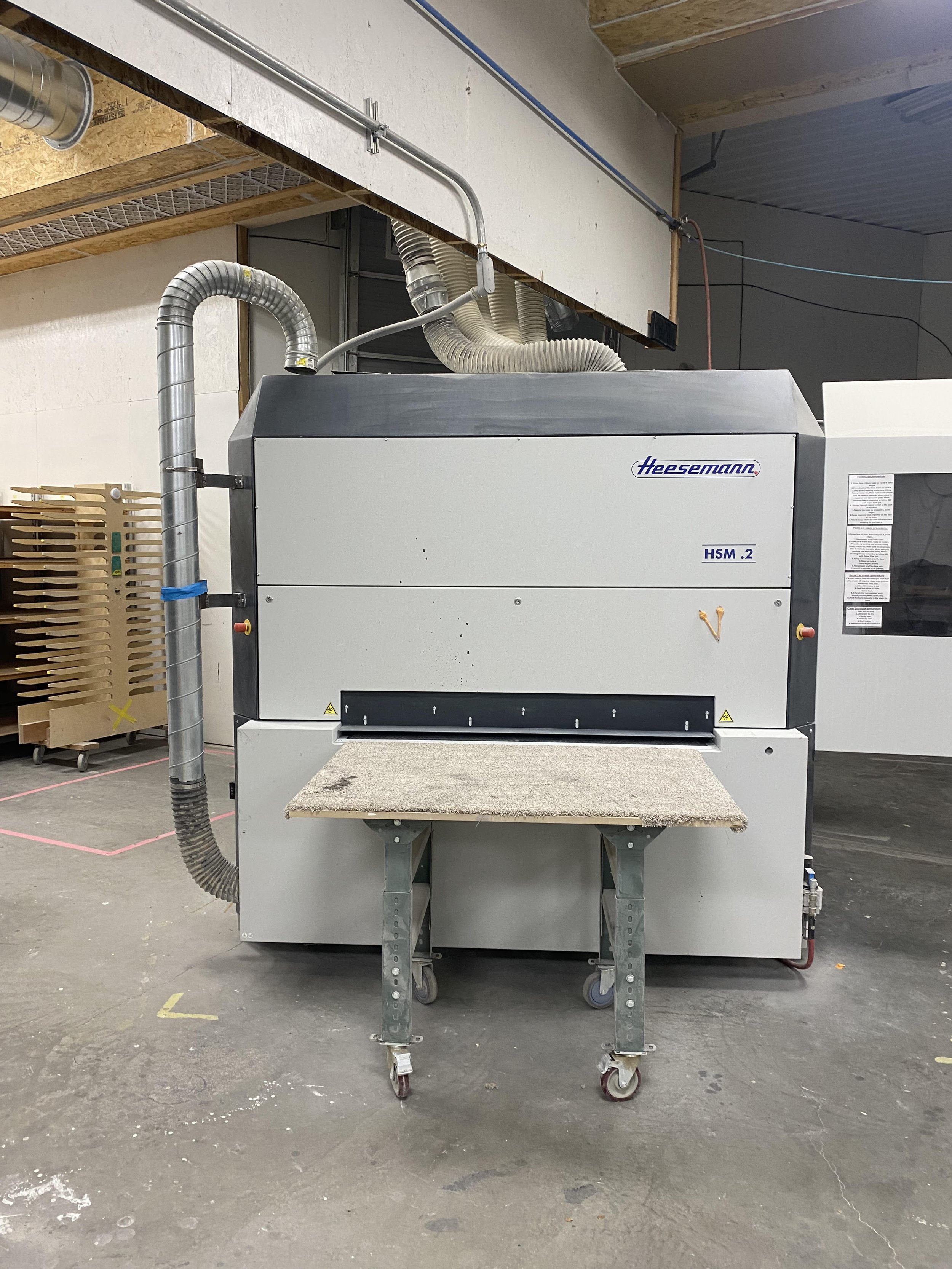

Head 1: DB-S Head – Rotating Planetary Sanding Unit

Heesemann's rotating planetary sanding unit incorporates sanding discs for the purpose of smoothing the work surface, breaking edges, seal sanding and texturing. This head includes:

·         10 driven discs with quick changing device

·         Rotation in both directions

·         Central height adjustment

·         7.5 kW (10 Hp) motor to power the discs

·         1.5 kW (2 Hp) motor gear box

·         Brush trimming:           Flex Trim

·         Tool Diameter:             150 mm           (6”)

·         Other brush discs available on demand

·         One set of discs is included with sanding head

Head 2: DB-S Head – Rotating Planetary Sanding Unit

Heesemann's rotating planetary sanding unit incorporates sanding discs for the purpose of smoothing the work surface, breaking edges, seal sanding and texturing. This head includes:

·         10 driven discs with quick changing device

·         Rotation in both directions

·         Central height adjustment

·         7.5 kW (10 Hp) motor to power the discs

·         1.5 kW (2 Hp) motor gear box

·         Brush trimming:           Flex Trim

·         Tool Diameter:             150 mm           (6”)

·         Other brush discs available on demand

·         One set of discs is included with sanding head

Press-on Rollers Before and after Sanding Heads

A 50 mm roller at the infeed and outfeed of the sanding head helps to hold down workpieces – particularly parts with very little surface area (i.e. face frames)

·         spring loaded and adjustable

·         Distance between rollers approx.. 500mm (20”)

Workpiece Blasting Device

Rotating compressed air nozzles for blasting workpiece surface. Operate only if a workpiece is present to preserve compressed air. Keeps the conveyor belt clean and helps clean dust out of profiled surfaces (such as center panels on 5 piece doors) – so parts leave clean and ready to move onto next process

 Technical Specifications

Working height: 880 mm (36.2")

Workpiece thickness: 3 mm to 160 mm (0.118" to 6.29")

Working width: 1300 mm (51.2")

Transport belt speed: 3 mpm to 15 mpm (10 fpm to 49 fpm)

Sanding belt access: Left hand

Operators side: Left hand

Voltage: 480 Volts, 3 Phase, 60 HZ (24 V controls)

Full load amps: Approx. 100 amps at 480 Volts

Compressed air: ~25 cfm @ 100 psi

Dust extraction: ~4000 CFM
