Makor Pressurized Spray System with Product Storage Trolleys

1. Reciprocating Spray Machine, Makor Model START-ONE M/P

2. Automatic Loader/Unloader, Makor Model LIFT 2M

3. Product Storage Trolley (2 each), Makor Model 37/P

Total Hours on machine: 53 hours…..in nearly new condition.

The START-ONE can be used for automatic spraying of all types of paint and glue. In a very simple and effective way, it offers all the advantages of much more complex systems: 

• better utilization of coating materials (paint savings = $) 

• uniformity of application and consistent quality 

• increased productivity compared to a manual operator 

• cleaner and healthier work environment

• Carrier Trays transport of work pieces 

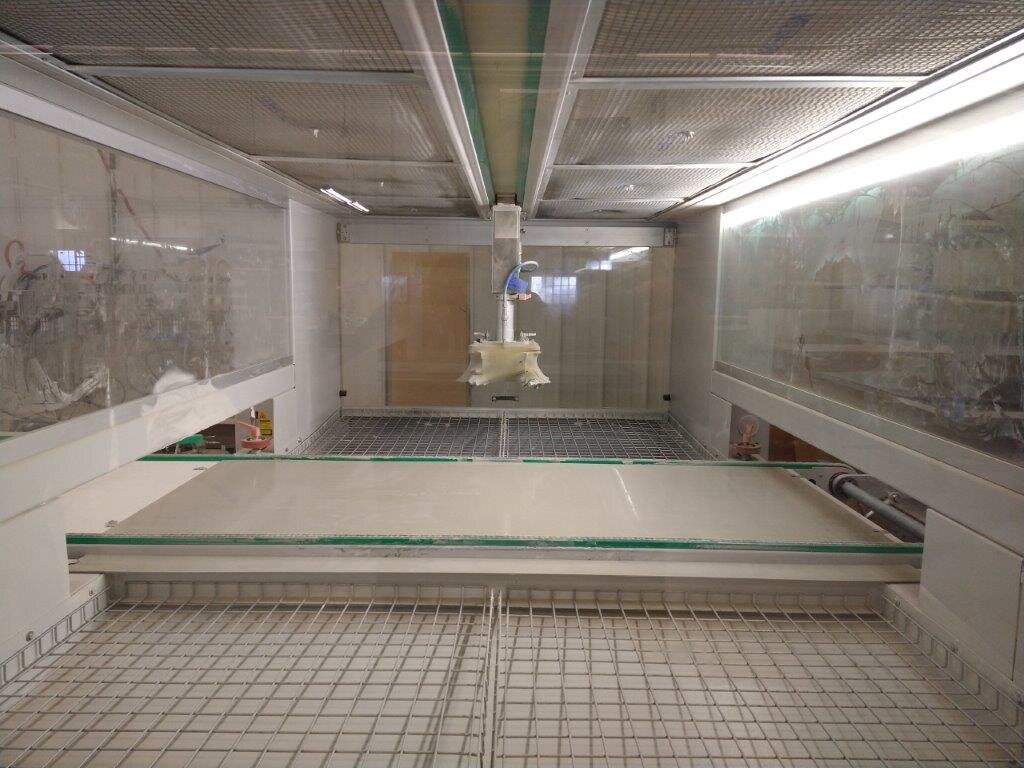

• product carrier trays are transported through the spray machine on two parallel chains equipped with a variable speed drive (inverter)

• carrier trays can be covered with paper or a similar protective material, which is periodically replaced/recovered as needed to extend functional life 

• system is capable of handling two product carrier tray dimensions:  2440 x 1220 x 25mm (96" x 48" x 1") or 4000 x 1220 x 25mm (13' x 48" x 1")

• useful working area of:  2200 x 1100mm (86-5/8 x 43-1/4") per carrier tray (26 sq ft.) or3700 x 1100mm (145" x 43-1/4") per carrier tray (43.7 sq. ft.)

• carrier tray length and thickness can vary minimally, but width must be precise to enable proper transportation

• four (4) guns can be connected to one of three (3) coating circuits 

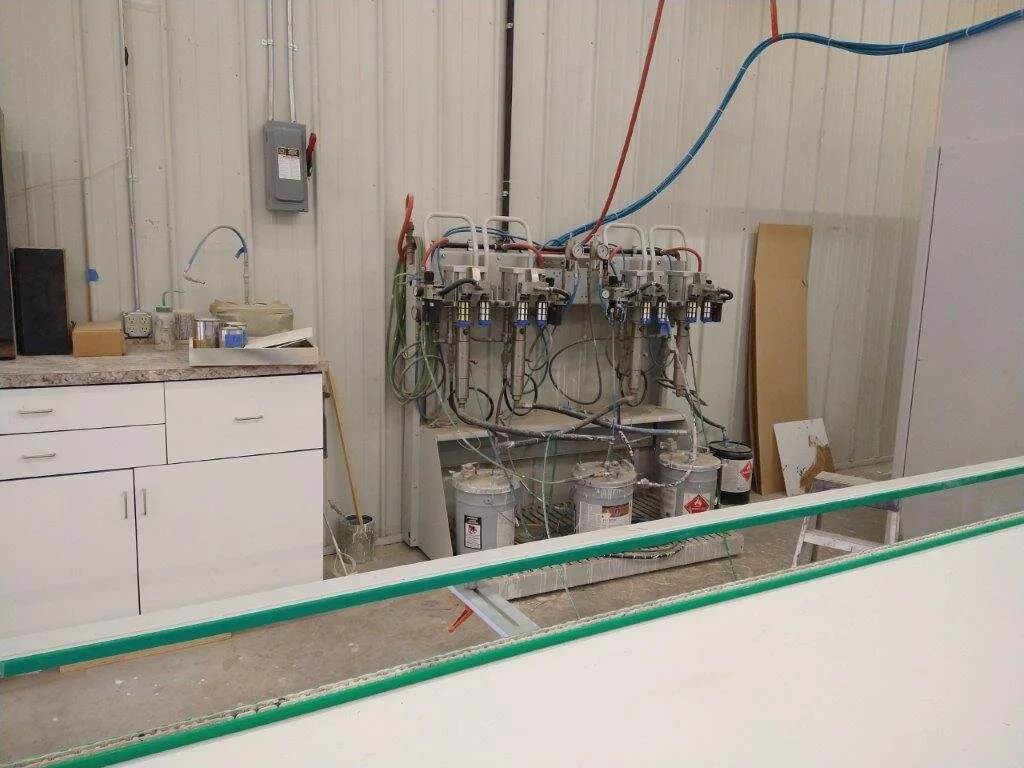

• three (3) high pressure circuits with recycle for coatings 

• one (1) high pressure circuit without return for solvent 

• coating circuits have return hoses for quick circuit washing and for paint recirculation 

• standard supply includes two (2) gun holding plates with quick disconnection system to allow fast replacing of the spraying unit

• machine is managed by a PLC with a special user interface that displays and manages all functions and working parameters in an intuitive way 

• a series of sensors detect the workpiece dimensions as they enter the machine to control the spray gun activation (optimize consumption of paint)

• Options Included: 

• three (3) high pressure circuits 

• rapid (manual) coating change-over system enables the operator to cease operation on active circuit, flush guns with solvent, activate the next circuit and then purge first circuit while machine is already in operation on the second circuit; composed of:  three (3) high pressure coating circuits with recycle (closed-loop)  one (1) high pressure circuit for solvent  one (1) 5-way manual valve for active circuit selection 

• pressurization unit complete with two (2) intake fans and removable filters to pressurize the spray booth

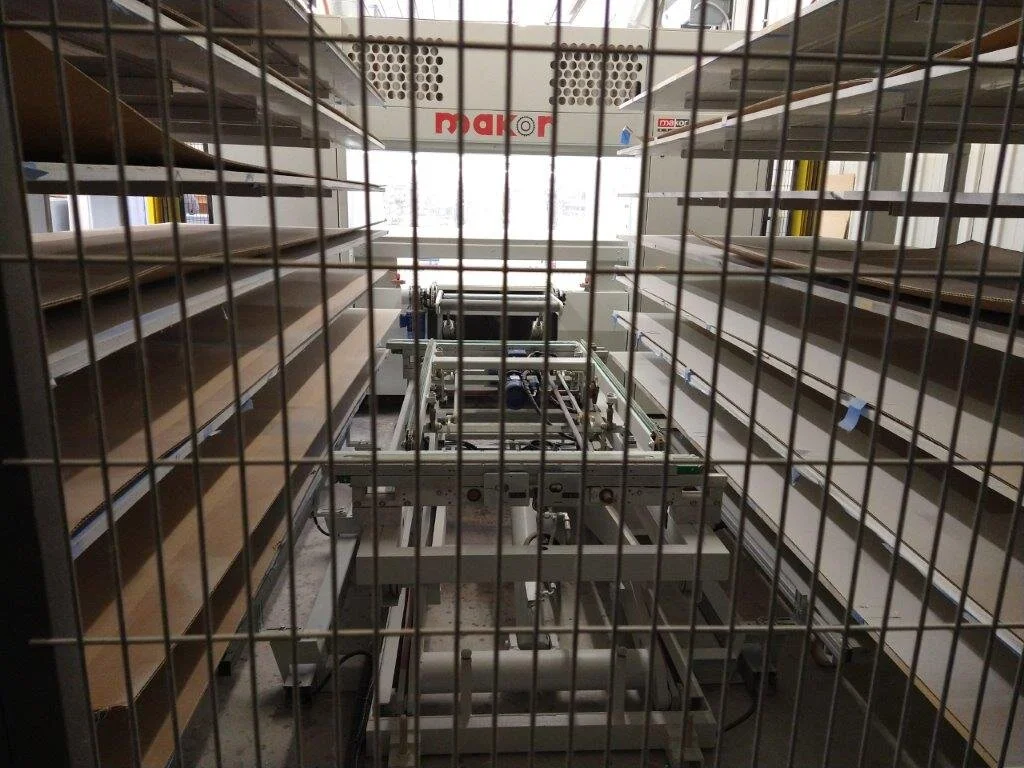

• Makor's LIFT Loader is especially designed for the automatic loading and off-loading of product carrier trays from trolleys to be put into a processing line. The loader has also a manual loading function. Carrier trays are handled only from the bottom to avoid contact with the coated items on the tray, thereby preserving the perfection of the finish.

• Two (2) trolleys are supplied.
