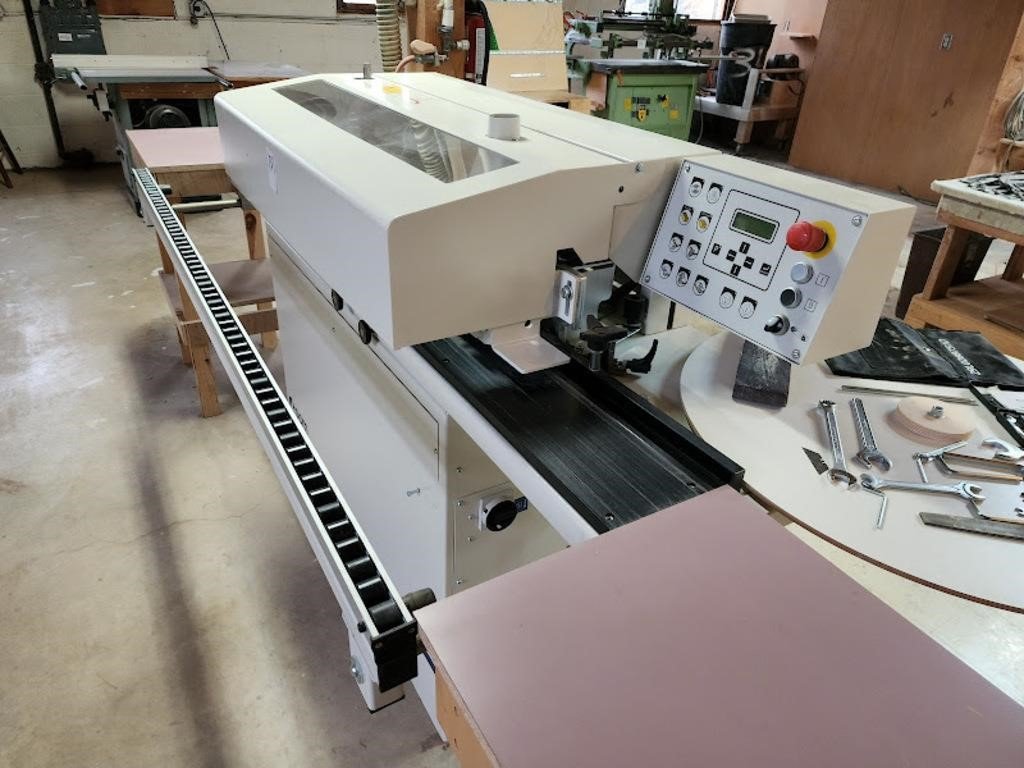

Error-free machining is ensured by the control panel positioned on the front of the machine, that allows an easy selection of all the main functions, among them, the operating units switching on and off. The PLC guides the operator during maintenance, cleaning, diagnostic operations, etc.

The glue is heated rapidly and evenly by the resistances. The automatic lowering of the glue temperature after a temporary halt in production when using the machine avoids burning of the glue.

The efficient cutter ensures cutting always accurate. The reference is taken directly on the panel itself; consequently it doesn’t require any adjustment.

The unit functions with slide copying pads to align perfectly to the work piece. These cutters are designed for straight or radius trimming of any type of edge, whether it is thick or thin, made of PVC, ABS, melamine, laminate or wood. The edge thickness is easily set by means of two numerical readouts.

Technical data

-me 20 Work table dimensionsmm1950 x 180Min.

÷ max. thickness of rolled edgesmm0,4

÷ 2Max. thickness of edges in stripsmm5Min.

÷ max. panel heightmm12

÷ 50Min. panel length/widthmm180/

- 65Feed speedm/min6
