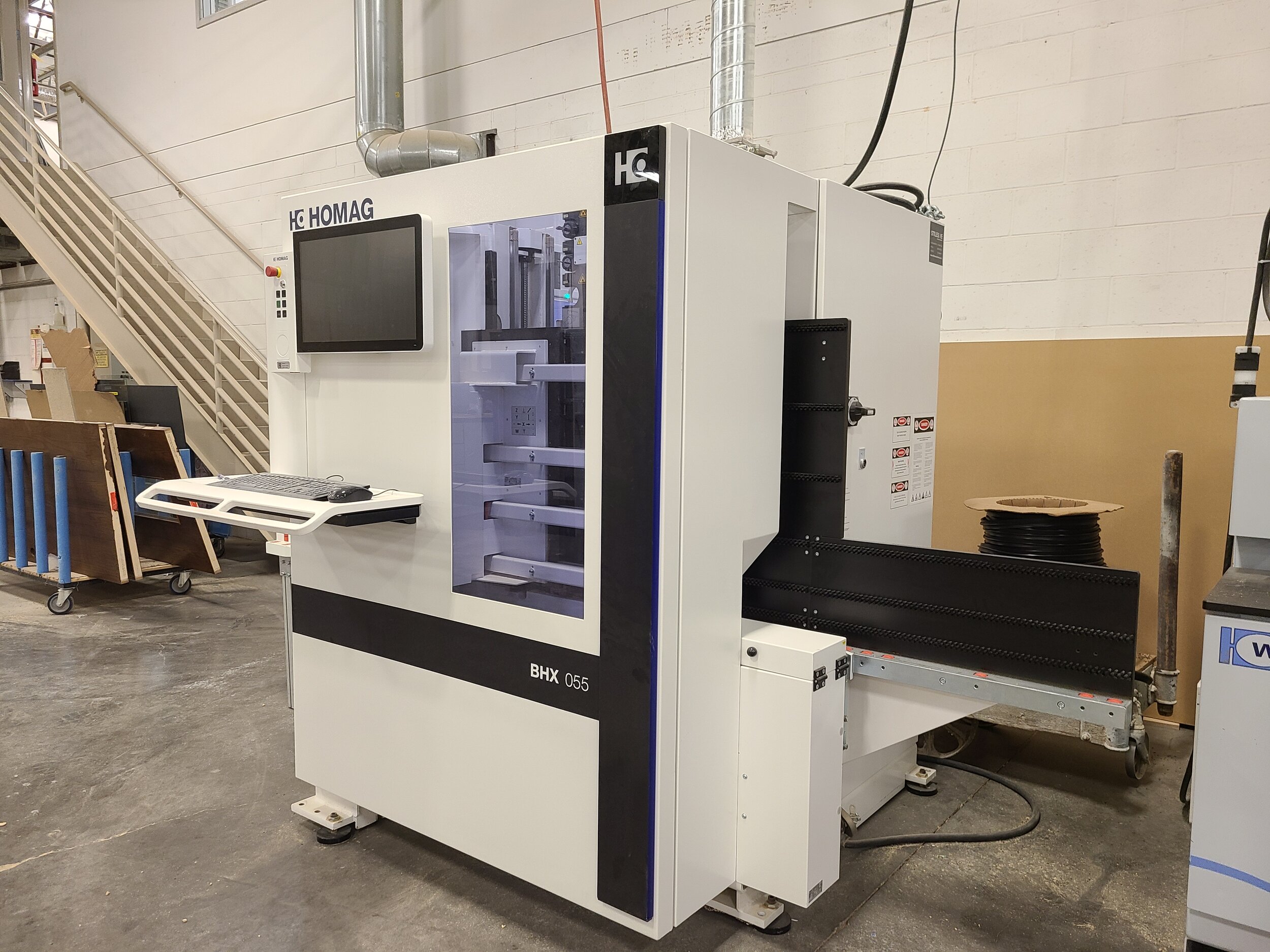

  CNC-controlled vertical processing center for processing:

Workpiece Technical Data  Workpiece length: minimum 200 mm  Workpiece length: maximum 3050 mm  Workpiece width: minimum 70 mm  Workpiece width: maximum 850 mm  Workpiece thickness: minimum 12 mm (for processing at the surface) minimum 8 mm (for vertical drilling only) minimum 12 mm (for horizontal processing at the two cross edges and at the top edge)1 maximum 56 mm  Workpiece weight: maximum 35 kgof wood or similar materials  Solid machine frame in rigid steel frame construction  Direct extraction at the processing unit and separate connection for the extraction device (on site)

Workpiece Clamping System The workpiece clamping/locating systems consists of:  One (1) stop cylinder for workpiece positioning  One (1) work piece clamping device traveling in X direction via ball screw o the position of the clamping device in the X-direction is automatically adjusted by program control o the clamp jaw itself has to be manually adjusted to the thickness of the workpiece o the clamping device stroke is 10 mm  One (1) workpiece counter-pressure block with automatic adjustment for the workpiece thickness

Panel Size Verification (X&Y) for Vertical Processing Centers VK #6526, 1 of  Contact-free optical sensor system for panel size verification of the workpiece positioned at the workpiece fence  A contact-free sensor in the X-direction checks the workpiece length, and another contact-free sensor in the Y-direction checks the workpiece width  The tolerance range has been preset at the factory to 5 mm.

Vertical Drill Block V13 Including quick change system and spindle clamping mechanism. Thirteen (13) spindle vertical drilling aggregate (separately activated with variable high speed range). Features spindle clamping to achieve the drilling depth safely.  Working capacity: refer to separate layout  Stroke Z-direction: 60 mm  Drilling depth: maximum 38 mm  Direction of rotation: right hand/left hand  Speed: 1,500 to 7,500 rpm frequency controlled  Drive: 2.3 kW  Shaft diameter: d = 10 mm for quick change system  Total length of drill: 70 mm  Drilling diameter: maximum 35 mm (for some locations)  Distance between spindles: 32 mm  Type of spindle: individually selectable.

Horizontal Drill Block with 4 Spindles in X Direction VK #1128, 1 of Horizontal drill block integrated in the drill head of the basic machine.  Working range: please refer to layout Horizontal Drill Block with 2 Spindles in Y Direction VK #1129, 1 of Horizontal drill block integrated in the drill head of the basic machine.  Working range: please refer to layout Grooving Saw D=100 mm (X Direction) VK #1012, 1 of Grooving saw integrated in the drill head of the basic machine.  Tool diameter: 100 mm  Saw blade thickness: maximum 5 mm  Machining cross section: see technical documentation Routing Motor HSK-63F 5 KW - Including Frequency Converter and 4- Place Tool Change Magazine Automatic tool change routing spindle in combination with a tool change magazine  Working range: refer to separate layout  Tool holder: HSK63  Wool changing: automatic  Direction of rotation: right hand / left hand  Rotation speed: 1,250 to 24,000 rpm infinitely programmable  Drive: frequency-controlled AC motor  Maximum capacity at the tool: up to 5 kW in continuous operation (S1 - 100%)  Spindle lubrication: permanent grease lubrication  Cooling: air cooled  Dust extraction: central  Router bit: maximum 25 mm shank diameter  Tool diameter: maximum 25 mm  Tool length: maximum of 80 mm projected length  Tool changer: four (4) tool pockets
