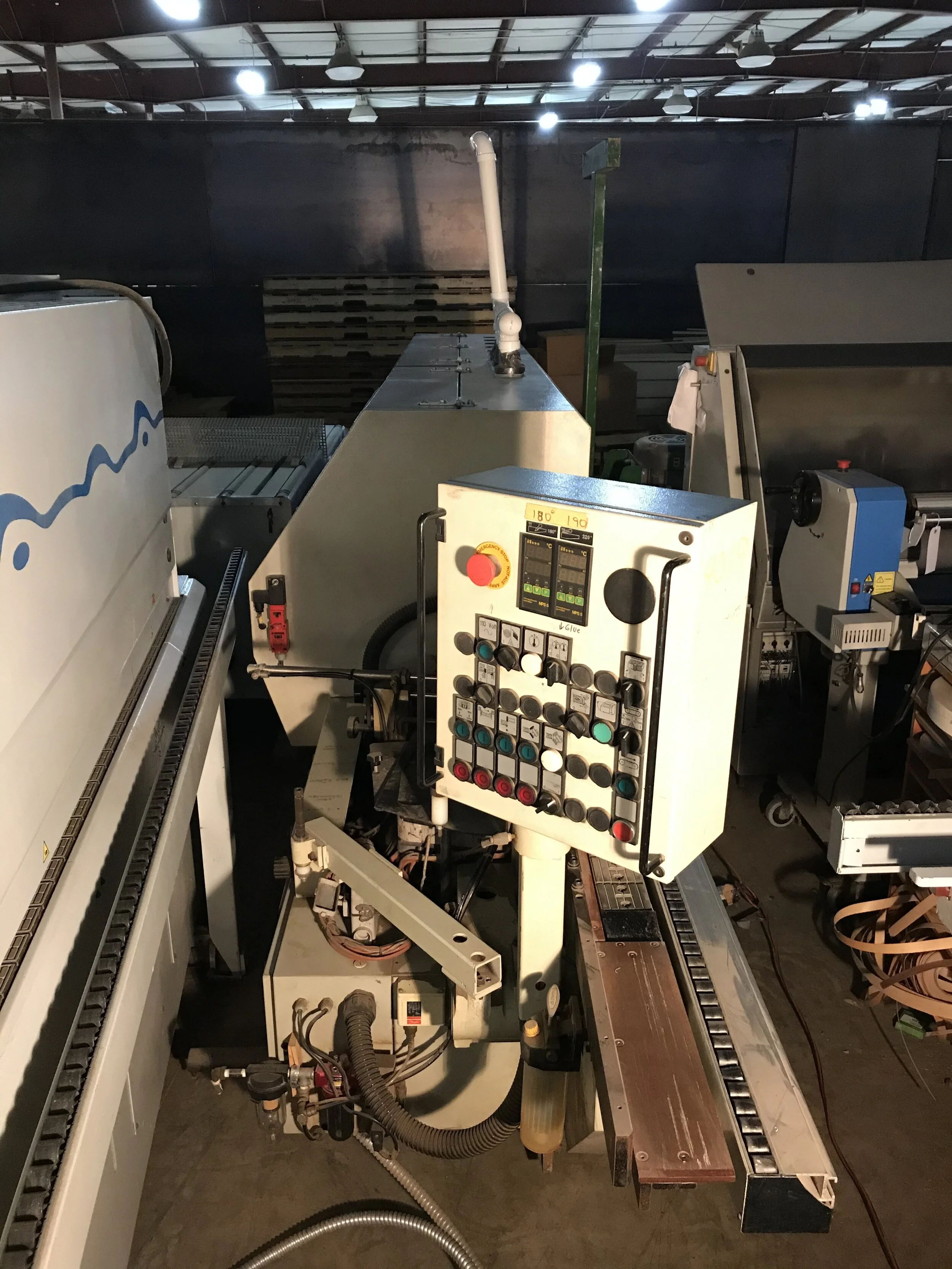

IDM Idimatic 44-5 Edgebander (USED, 1996)
IDM Idimatic 44-5 Edgebander (Used, 1996)
Model: IDM Idimatic 44-5
SN: 20.001.575
Year: 1996
220v; 3~; 60Hz
Stock#: 1610-06
VIDEO: https://youtu.be/RC4tfEQuw3M
IDM Idimatic 44-5 fully automatic single sided edge bander for the application of coil materials, as well as strip materials, like for example, solid wood veneers 0.4 mm to 7 mm thick or high pressure laminates and PVC 2-3mm.
Panel thickness 10-50 mm ( 2")
* Glueing unit with quick melt
* Front and rear end trimmer unit (motor 3/4 HP -14,000RPM ea.), motors tilt 0 to 15 degrees on horizontal plane
* Top/bottom trimmer unit with super-imposed motors(rough), (motor 3/4 HP-14,000 RPM)
* Top/bottom trimmer and beveller(excess) (motors 1.4HP- 14,400 RPM ea.) bevel 0 to 30 degrees
* Scraping unit for plastics(PVC),
* Buffing station.
IDM Idimatic 44-5 Edgebander (Used, 1996)
Model: IDM Idimatic 44-5
SN: 20.001.575
Year: 1996
220v; 3~; 60Hz
Stock#: 1610-06
VIDEO: https://youtu.be/RC4tfEQuw3M
IDM Idimatic 44-5 fully automatic single sided edge bander for the application of coil materials, as well as strip materials, like for example, solid wood veneers 0.4 mm to 7 mm thick or high pressure laminates and PVC 2-3mm.
Panel thickness 10-50 mm ( 2")
* Glueing unit with quick melt
* Front and rear end trimmer unit (motor 3/4 HP -14,000RPM ea.), motors tilt 0 to 15 degrees on horizontal plane
* Top/bottom trimmer unit with super-imposed motors(rough), (motor 3/4 HP-14,000 RPM)
* Top/bottom trimmer and beveller(excess) (motors 1.4HP- 14,400 RPM ea.) bevel 0 to 30 degrees
* Scraping unit for plastics(PVC),
* Buffing station.
IDM Idimatic 44-5 Edgebander (Used, 1996)
Model: IDM Idimatic 44-5
SN: 20.001.575
Year: 1996
220v; 3~; 60Hz
Stock#: 1610-06
VIDEO: https://youtu.be/RC4tfEQuw3M
IDM Idimatic 44-5 fully automatic single sided edge bander for the application of coil materials, as well as strip materials, like for example, solid wood veneers 0.4 mm to 7 mm thick or high pressure laminates and PVC 2-3mm.
Panel thickness 10-50 mm ( 2")
* Glueing unit with quick melt
* Front and rear end trimmer unit (motor 3/4 HP -14,000RPM ea.), motors tilt 0 to 15 degrees on horizontal plane
* Top/bottom trimmer unit with super-imposed motors(rough), (motor 3/4 HP-14,000 RPM)
* Top/bottom trimmer and beveller(excess) (motors 1.4HP- 14,400 RPM ea.) bevel 0 to 30 degrees
* Scraping unit for plastics(PVC),
* Buffing station.
*This machine is offered in good running condition as taken from service and is subject to prior sale. Specifications are approximate and to the best of our knowledge. Verification is available upon request.
