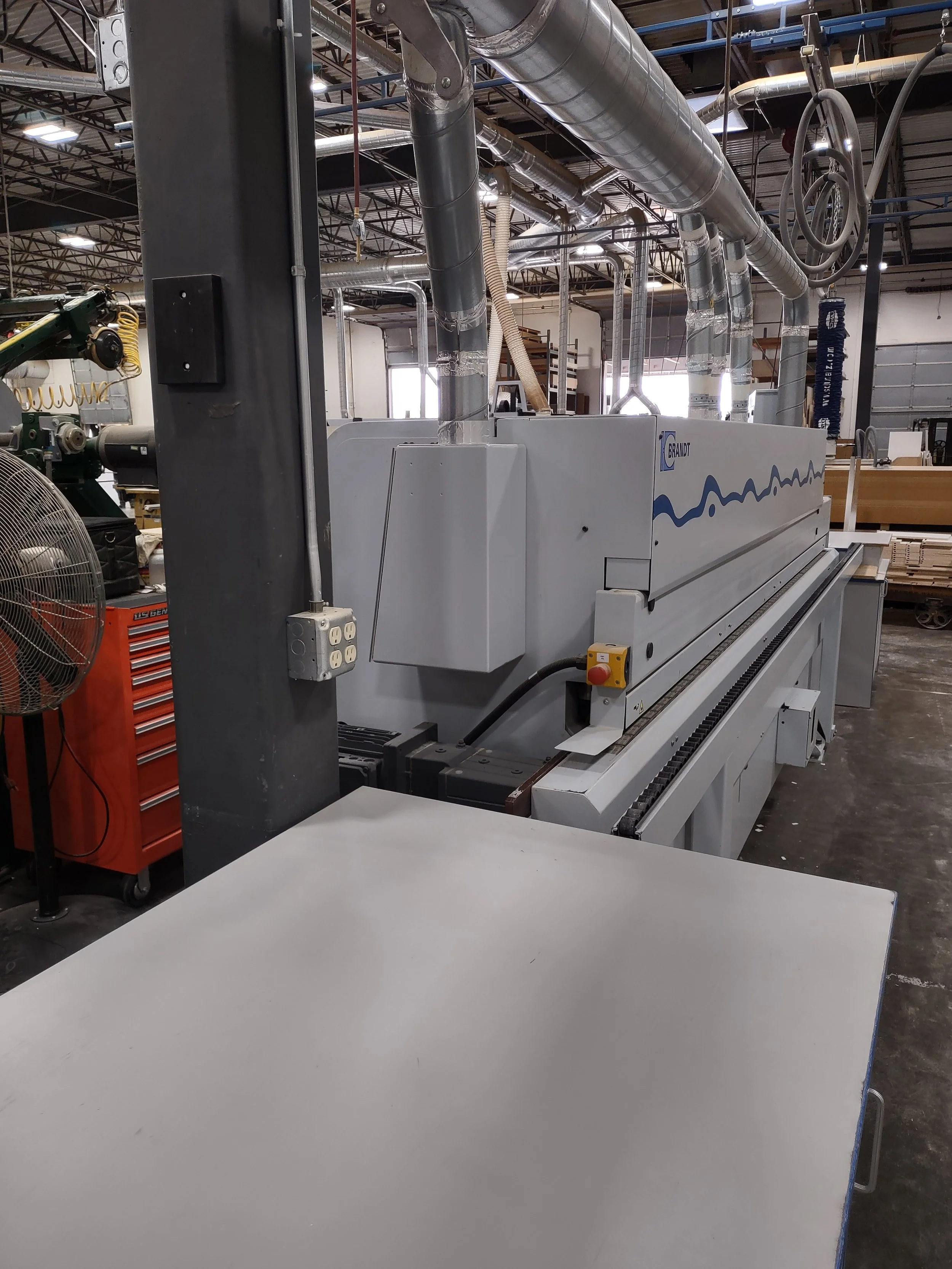

Model: KDF 530 C
SN: 0-261-0x-xxxx
Year: 2007

Edge band thickness 0.4 – 8mm (0.016" - 1/4” )

Coil cutoff maximum 0.8 x 60 mm; 3.0 x 45 mm (PVC)

Edgeband height 12 - 65 mm (1/2" – 2 9/16 ")

Panel length min. 160 mm (6 3/8")

Panel width min. 65 mm (2 3/8")

Panel thickness - min. 8 mm (5/16") - max. 60 mm (2 3/8")

Feed speed – 11 m/min.

Internal modem for remote diagnostic link.

Smooth upper pressure rollers.

Automatic feed track lubrication system.

First pressure roller driven and three idle pressure rollers.

Pre-Mill Station

Double motor end trimming unit.

Program controlled indexing from straight to bevel end trimming.

Fine Trimming Station: Top/bottom (2) motors, 0.35 kW (0.50 HP) 12,000 RPM, bevels 0° - 25°, with combination flush/radius/chamfer cutterheads; horizontal and vertical tracing wheels.

Corner Rounding Unit: (1) Motor 0.35 KW (0.5 HP) 12,000 RPM for leading and trailing edges of panels; either radius or chamfer cutters can be mounted; 3 mm max. edge thickness.

Profile scraping

Buffing Station: Top/bottom (2) motors, 0.09 KW (0.125 HP) 1,400 RPM.
